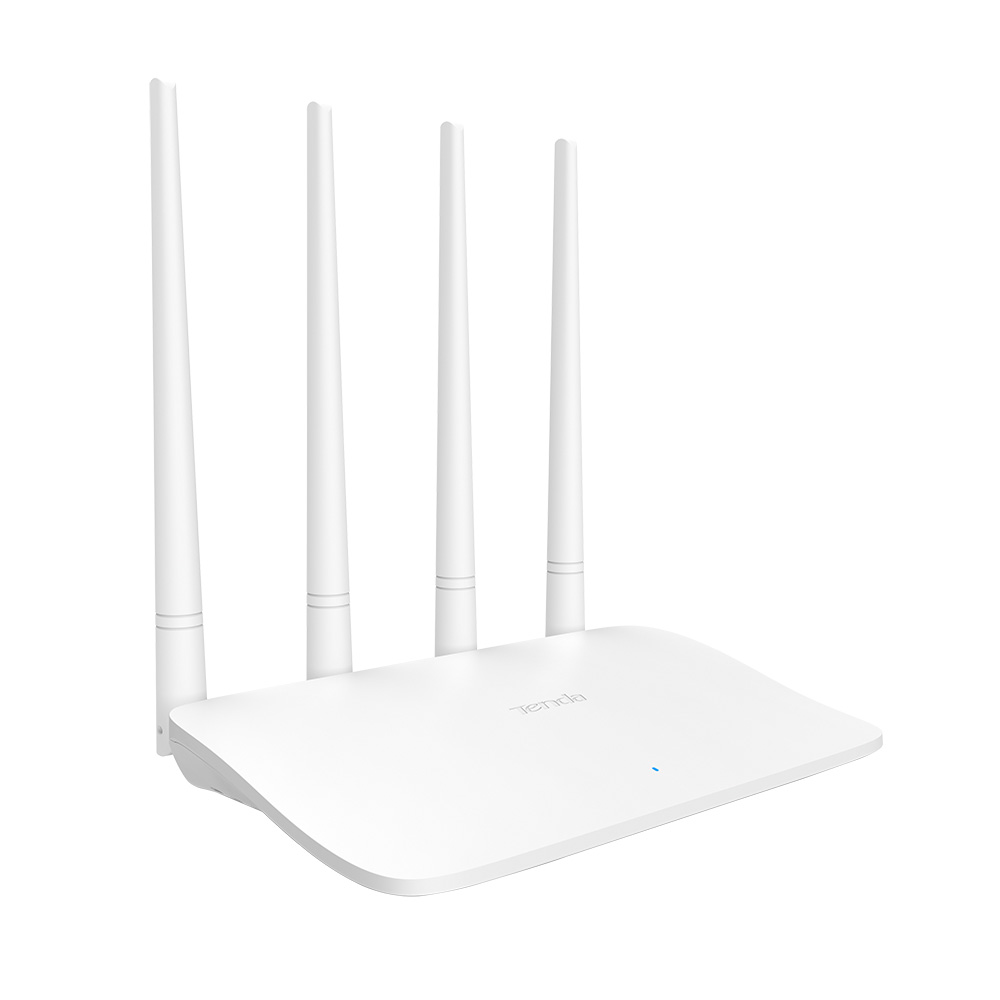

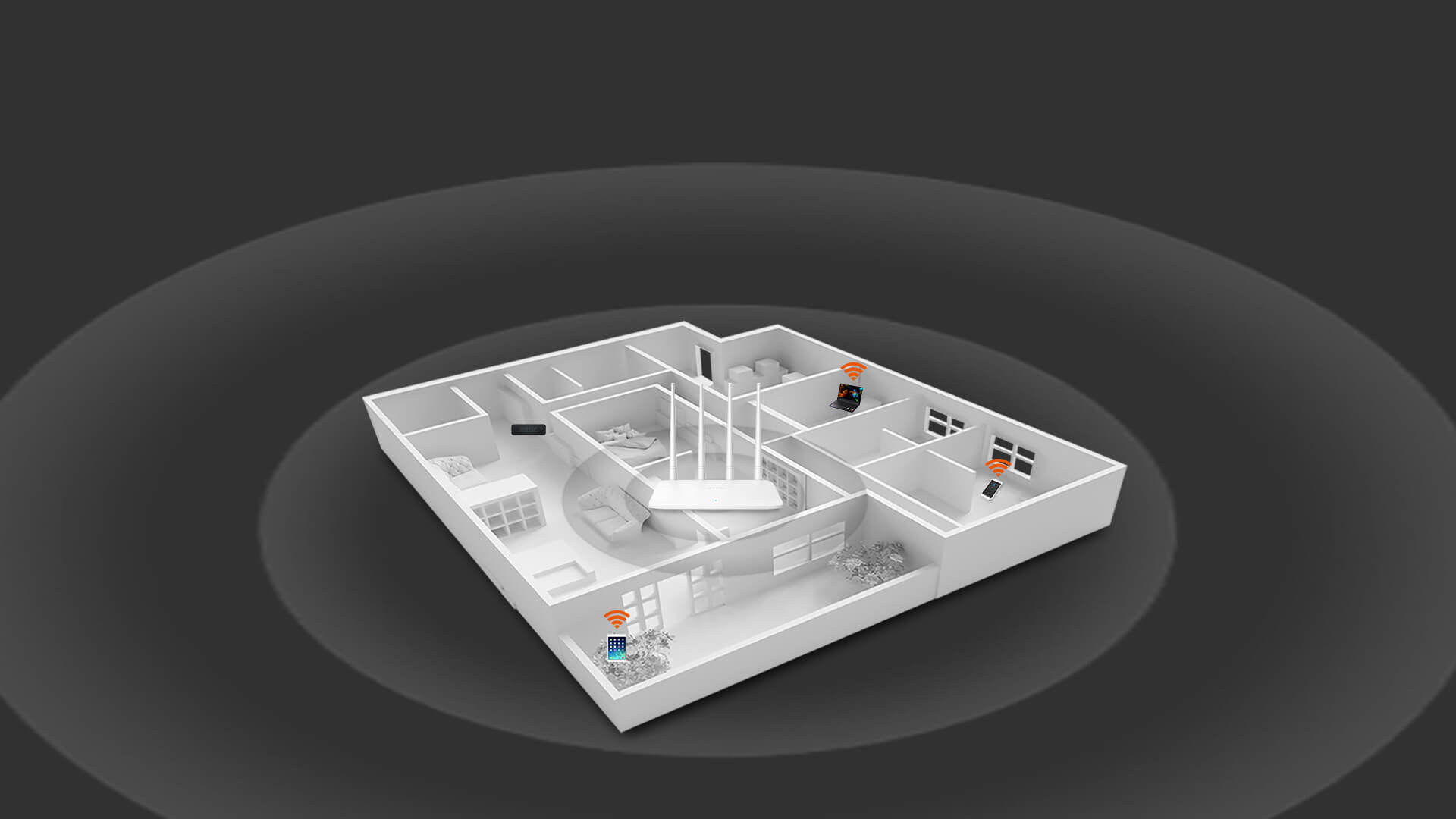

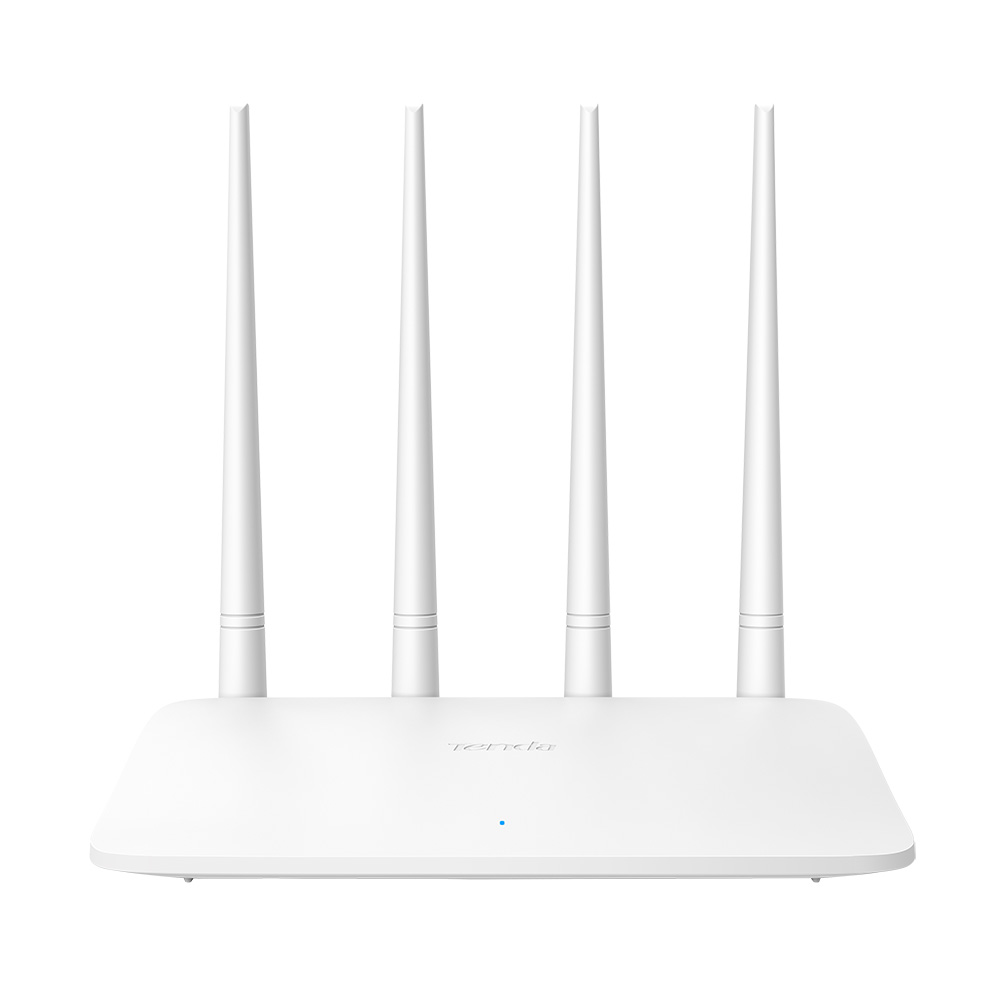

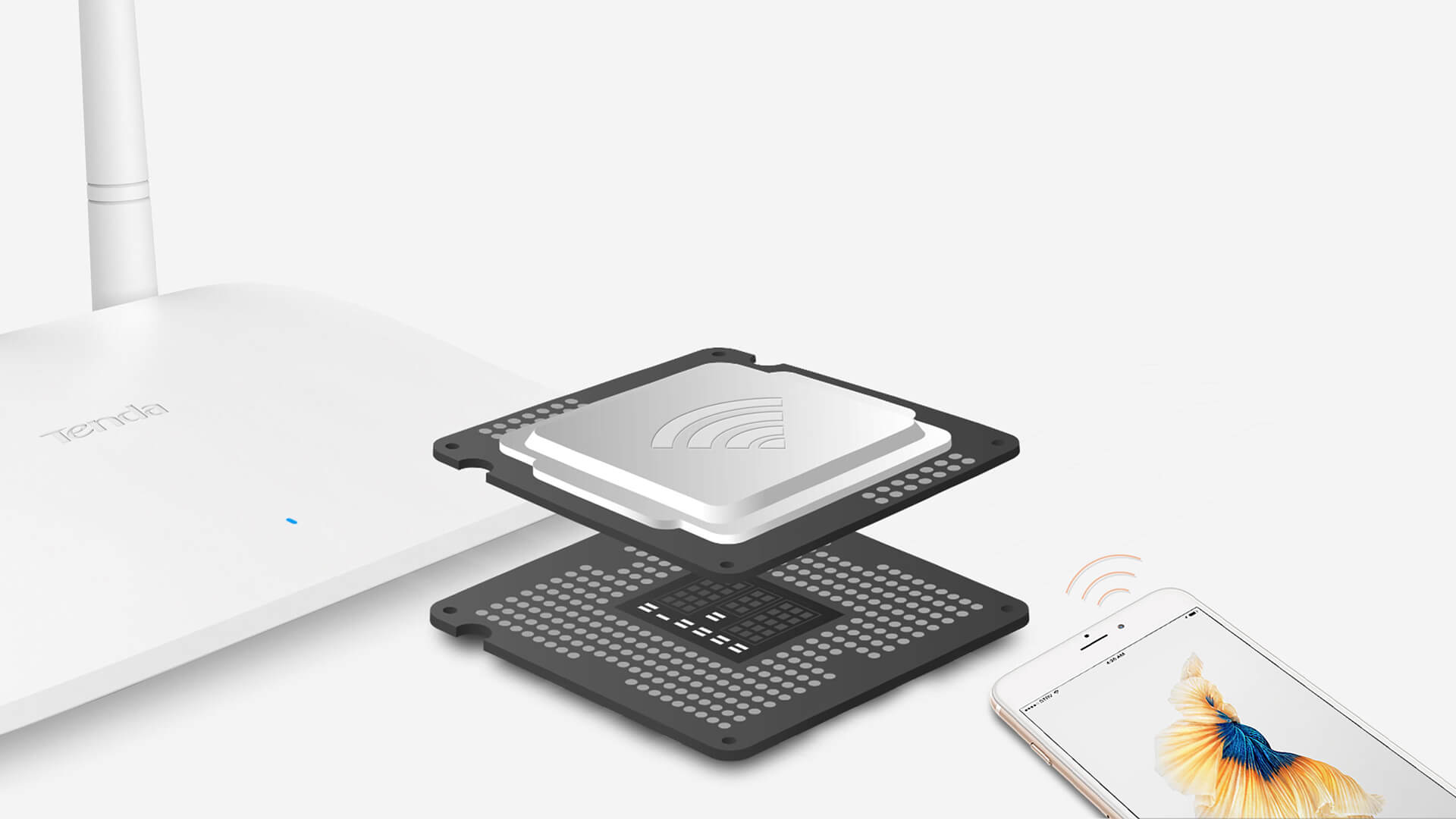

Four antennas, designed for small and medium-sized apartment, whole-room coverage Four External 5dBi antennas, based on MIMO technology, multiple transmissions, ensure fast and stable wireless data transmission and effectively enhance Wi-Fi signals. TEF1109D Qualcomm chip，more stable The built-in Qualcomm chip is compatible with any mainstream mobile phone signal module, and maintain your connection stable. TEF1109D The latest repeater mode， better than traditional WDS mode New WISP repeater mode，it is more easy and compatible and amplifies WiFi signals in one step, you can enjoy whole-room WiFi coverage and lag free WiFi performance .
Standard&Protocol IEEE802.3, IEEE802.3u,IEEE802.3ab Interfaces 1*10/100Mbps WAN port 3*10/100Mbps LAN ports Antenna 4*5dBi external antennas Button 1*RST Power Input：AC 100-240V~50/60Hz 0.6A Output：DC 9V0.6A Dimension 204*147.5*211mm LED Indicator SYS*1 Wireless Wireless Standard IEEE 802.11b/g/n 2.4GHz Data Rate 2.4GHz: Up to 300Mbps Frequency 2.4GHz Transmission Power CE:<20dBm Basic Features WiFi On/Off Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK Software Internet Connection Type PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) Operating Mode Wireless Router Mode Universal Repeater Mode WISP Mode AP Mode DHCP Server DHCP Server DHCP Client List DHCP Reservation Virtual Server Port Forwarding DMZ Host UPnP Security Client Filter Parental Control(support black list and white list) Remote Web Management Firewall Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP attack Forbid WAN PING from internet DDNS no-ip,DynDNS,Oray VPN IPsec pass through PPTP pass through L2TP pass through Special Features PPPoE Username/password Clone Smart WiFi Schedule Others Bandwidth Control MAC Clone System Log Backup & Restore configurations Firmware upgradeable via browser Others Temperature Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃. Humidity Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. Default Settings Default Access: 192.168.0.1 Certification CE/FCC/RoHS EIRP Power (Max) 2.400-2.4835GHz:19.50dBm (EIRP) Package Contents Wireles Router*1 Power Adapter *1 Install Guide*1 Ethernet Cable*1
