High power amplifier and 5dBi antennas provide 4x the wireless range of a normal router
Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
2x the wireless speed of a normal router over long-distances enables seamless data transfer and media streaming across your network
300Mbps wireless speed ideal for video streaming, online gaming and VoIP
What This Product Does
300Mbps High Power Wireless N Router TL-WR841HP is a powerful wireless solution well suited for the home or office. With 300Mbps wireless speeds, TL-WR841HP is ideal for streaming HD video, making VoIP calls and online gaming. What's more, featured with high power amplifier, 2*5dBi antennas and up to 1000mW*1 transmission Power, the device greatly boosts Wi-Fi performance.
High power amplifier and 5dBi antennas provide 4x* the wireless range of a normal router, with the TL-WR841HP, you can enjoy your wireless network not only in restricted indoor areas but also in your backyard or even by the pool.
*Actual transmission power may be legally limited in certain regions.
Wall Penetrating Wi-Fi
Enhanced Wi-Fi signal provides incredibly strong penetrability, cutting through walls and obstacles, eliminating dead zones, with which, you don't have to be physically tethered to the walls or floors to access the Internet.
2x* the wireless speed of a normal router over long-distances allows for seamless data transfers and media streaming across your network. You no longer have to endure poor wireless performance over long distances.
* Actual performance may vary due to differences in operating environments, building materials and wireless obstructions.
Wireless Speed up to 300Mbps
With Wireless N technology, TL-WR841HP provides much higher speed and better coverage than traditional 11G products. Speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls.
WPS - One Button Security
The TL-WR841HP features Wi-Fi Protected Setup™ (WPS) that allows users to almost instantly setup their security simply by pressing the "WPS" button on their router, automatically establishing a WPA2 secure connection, which provides improved security compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don’t need to remember a password!
The device comes with a CD with an Easy Setup Assistant that leads you through the setup process step-by-step, and even helps with wireless network settings and security configurations, so even novice users can set up their networks in a flash.

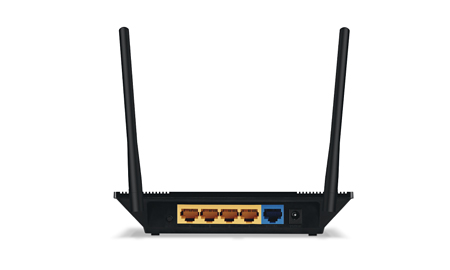

Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button WPS/Reset Button
External Power Supply 12VDC / 1A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 2*5dBi Detachable Omni Directional Antenna (RP-SMA)
Dimensions ( W x D x H ) 6.6in.x5.1in.x1.2in.(168.5mmx130mmx31.5mm)
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP, For countries using CE Standards)
<30dBm (EIRP, For countries using FCC Standards)
Reception Sensitivity 270M: [email protected]% PER
130M: [email protected]% PER
108M: [email protected]% PER
54M: [email protected]% PER
11M: [email protected]% PER
6M: [email protected]% PER
1M: [email protected]% PER
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
WAN Type Dynamic IP/Static IP/PPPoE/
DHCP Server, Client, DHCP Client List,
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N High Power Router
Power supply unit
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
