Spotlight: * Latest ADSL standards for superior performance: up to 24Mbps downstream * Various QoS policies enable various application, meeting people’s different needs * High speed DSL connection, sharing Internet access

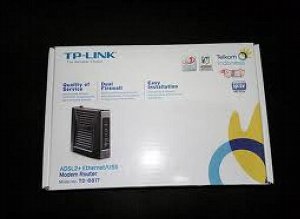

The TP-Link ADSL2+ Router (TD-8817) is a 2-in-1 device that combines the functions of a DSL modem and 1-port 10/100 Ethernet router. It also provides a USB interface through which you can connect to the router. It supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps downstream) and longer reach from your Internet Service Provider’s (ISP) Digital Subscriber Line Access Multiplexer (DSLAM). You can also create a wired network to share your high-speed Internet connection, documents, photos, music, videos, and printers. The TD-8817 includes a built-in QoS engine that helps prioritize Internet traffic to enable smooth Internet phone calls (VoIP) and ag-free online gaming. In addition, this device includes Dual Active Firewalls (Packet filtering and NAT) to help protect your network from potential attacks from across the Internet. Setting up the TD-8817 is simple since it automatically detects your DSL settings to quickly establish a connection to the Internet. The TD-8817 also supports TR-069 which automatically updates the firmware and other settings when they become available from your ISP. Featuring high ADSL performance, various QoS policy, easy-to-use, TD-8817 is your best choice to access to the internet.

* Access a high-speed DSL Internet connection * Up to 24Mbps downstream speed * Supports Annex M, which can double upstream data rates * Connect your computer using Ethernet or USB * QoS prioritization based on ToS, DSCP, service type or 802.1p * Triple Active Firewalls: SPI, NAT and Packet Filter * Supports DHCP, Universal Plug-and-Play (UPnP), and includes a user-friendly Setup Wizard which takes you through configuring your network, step by step * Administer and Upgrade the Router Remotely over the Internet

Software Specification ADSL Features  Full-rate ANSI T1.413 Issue 2  ITU-T G.992.1 (G.dmt)  ITU-T G.992.2 (G.lite)  ITU-T G.994.1 (G.hs)  ITU-T G.992.3 (G.dmt.bis)  ITU-T G.992.5  Max 6 kilometers Data Rates  Downstream: Up to 24Mbps  Upstream: Up to 3.5Mbps (With Annex M enabled) ATM Features  UNI 3.1/4.0，ATM Adaptation Layer Type 5-AAL5  Multiprotocol encapsulation over ATM (RFC 1483)  UBR, CBR, VBR-rt, VBR-nrt  Supports 8PVCs PPP Features  PPP over ATM (RFC 2364)  PPP over Ethernet (RFC 2516) Switching Features  IGMP snooping  IGMP multicast  Port VLAN  Tag VLAN  IEEE 802.1d transparent learning bridging Routing Features  Classical IP and ARP over ATM (RFC 1577/2225), MER, RIP V1/V2  Static routing, IP, TCP, UDP, ARP  NAT, NAPT, DNS, DDNS, DHCP Server  UPnP, Virtual Server, DMZ  SIP, H323 ALG Security  Stateful Packet Inspection (SPI)  NAT  Packet Filter VPN Pass Through  IPSec/PPTP/L2TP Pass-through QoS  IP Type of service(ToS)  802.1p Device Management  HTTP, TELNET, Console  Administration and operation software (firmware) upgradable locally by WEB, TFTP, FTP, Console  SNMP V1/V2  CWMP(TR-069) Hardware Specification Ports  1 10/100M Auto-Negotiation RJ45 ports(Auto MDI/MDIX)  1 RJ11 port  1 USB 1.1 port LED Indicators  USB, LAN, ADSL, ACT, Power Dimensions (W*D*H)  6.5*4.3*1.1 in.(165*108*28 mm) Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)  Storage Temperature: -40℃~70℃ (-40℉~158℉)  Operating Humidity: 10%~90% non-condensing  Storage Humidity: 5%~90% non-condensing

Pabrikan : TP-LINK
