Dynamic Load Balance Broadband Router TL-R470T+ Up to 4 WAN. Changeable WAN/LAN ports for flexible network resource allocation Multiple load balance strategies for maximizing total bandwidth Advanced QoS feature guarantees the requirements of different bandwidth applications

What This Product Does The TL-R470T+ Load Balance Broadband Router possesses stronger data transmission capacity and stability, cost-efficient for networks in places such as Internet cafes and small offices. Superior Performance and High Stability The router features a network dedicated processor, clocked at 400MHz for powerful processing performance, an internal power supply to allow for long term operation stability, and professional lightning protection design keeps your investments as safe as possible. Three Changeable LAN/WAN Ports

The TL-R470T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device.

The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.

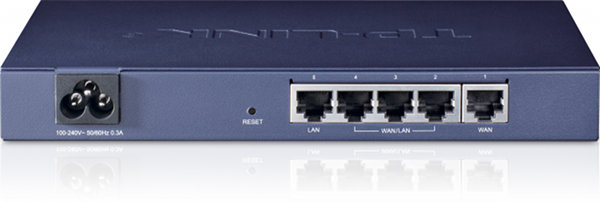

By the factory default, TL-R470T+ is set to work in the dual WAN ports mode: port 1 and port 2 are working as WAN ports, while port 3~5 are LAN ports. Management for a Fluid Networking Experience

Integrating multiple load balancing strategies, IP and port based bandwidth control, session limit, domain filtering, and IP/MAC address filtering, the TL-R470T+ provides users with a fluid network experience, without lag and connection drops. Easy to Install and Use

With user-friendly web-based management, remote management and configuration backup & restore functions, the TL-R470T+ provides many comprehensive features that are easy to deploy and maintain, especially for businesses lacking professional IT staff.

Dynamic IP, Static IP, PPPoE,L2TP, PPTP and BigPond Cable Internet connection options easily connect to Internet Time-based access control allows parents or administrators to establish restricted access policies for children or staff IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC which guarantees the performance of VoIP or video applications Built-in DHCP server supports static IP address distribution Built-in firewall supports IP address filtering, Domain Name filtering, and MAC address filtering IP and MAC binding function effectively prevents ARP virus attacks Powerful DoS attack protection safeguards your network Virtual Server, Special Application, DMZ host and UPnP help users build their own servers DDNS helps users utilize remote management easily with a domain name

Hardware Features STANDARDS AND PROTOCOLS IEEE 802.3, 802.3u, 802.3x TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS INTERFACE 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports NETWORK MEDIA 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) BUTTON Reset Button POWER SUPPLY Internal Power Adapter DIMENTIONS( W x D x H ) 209*126*26 mm Software Features WAN TYPE Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond BASIC FUNCTION DHCP Server, DHCP Client MAC Address Modify/Clone, VPN Pass-through Static Routing, Dynamic DNS MULTI-WAN FUNCTION WAN Load Balancing Detecting Online QoS IP and Port Based Bandwidth Control Session Limit FORWARDING RULES Virtual Server Port Triggering DMZ Host UPnP DDNS Supports Dyndns / PeanutHull / Comexe / No-IP VPN PASS-THROUGH PPTP/L2TP/IP Sec ACCESS CONTROL Parental Control, Local Management Control, Host List, Access Schedule, Rule Management SECURITY IP Address Filtering MAC Address Filtering Domain Name Filtering DoS Protection MANAGEMENT Web Management Port Mirror Restore & Backup Configuration Remote Web Management Others CERTIFICATION CE, FCC, RoHS PACKAGE CONTENTS Load Balance Broadband Router TL-R470T+ Power cord RJ-45 Ethernet Cable WAN/LAN Ports Configuration Guide Resource CD TEMPERATURE Operating: 0°C~40°C (32°F~104°F) Storage: -40°C~70°C (-40°F~158°F) HUMIDITY Operating: 10%~90% RH Non-Condensing Storage: 5%~90% RH Non-Condensing
